22nd Jul 2016 - A very enjoyable and informative evening on the hottest day in 2016

On Tuesday 19th July, The English Apple Man joined the Under 40's at Brogdale Farm.

It's Tuesday evening on the hottest day of the year and The English Apple Man is in the company of his 'young U40 friends' for a very informative and socially enjoyable evening.


The event came about as Charlie Dunn - U40's Chairman and Scott Garnet - ICL discussed the trials work going on at Brogdale Farm under the management of FAST personnel. A perfect opportunity for U40's 'bonding' and an insight into the valuable research carried out by FAST on behalf of ICL.


ICL, or to give the company it's full title Israel Chemicals Ltd. is one of the largest mining companies in the world; mining phosphates ....


Potash and Phosphate Fertilizers


An extract from the ICL website summarises the scale of ICL operations.


"We are one of the world's largest producers of potash and an integrated producer of a variety of products based on phosphate rock, including phosphate fertilizers, phosphoric acid and animal feed additives. We are the 6th largest potash producer in the world and the 2nd largest in Western Europe. We are also the largest producer of PK fertilizers (compound potash and phosphate fertilizers) in Europe. Our major markets include Europe, Brazil, India and China".


Specialist products relevant to our UK fruit industry include; Controlled Release Fertilizers (CRF) - Fertigation Fertilizers: - Liquid NPK, Water Soluble NPK, Water Soluble Single Fertilizers - Foliar Fertilizers: Liquid NPK, Water Soluble NPK, Tailor-Made Fertilizers......


FAST - Brogdale Farm - On arrival, we were offered a very welcome choice of cold drinks; the temperature at 5.30pm was still 30 degrees C.


Below: Ivan Velasco

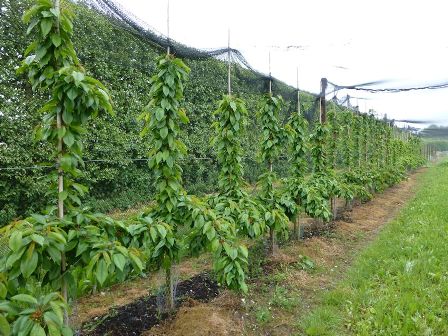

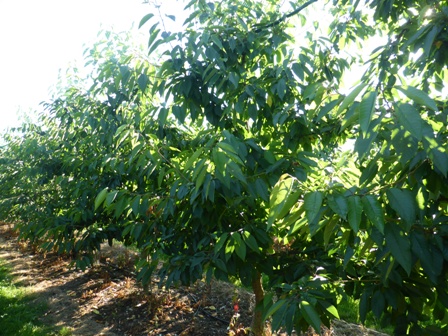

Before visiting the ICL trials, we visited the Cherry systems trial, where FAST advisor Ivan Velasco updated the group on the 'plus and minus' virtues between Table, Espalier, Run through, UFO Angled Cordon, Vee System, Bibaum etc.

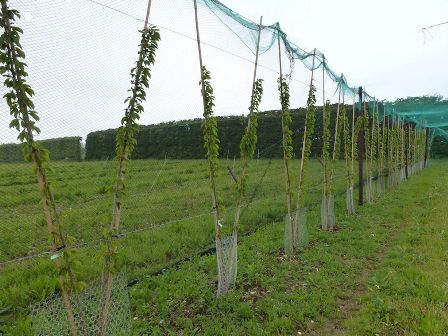

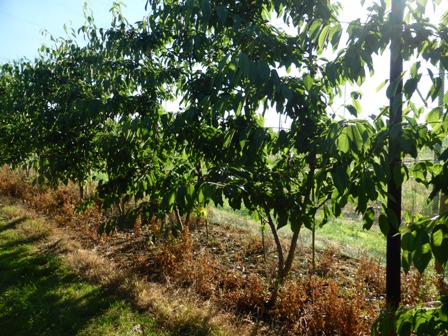

Ivan drew attention to the twin stem, where the tree was pruned to grow two upright leaders in a V formation; this is different to the true V format of the Bibaum which has two buds 'budded' onto the rootstock producing two leaders of equal vigour. Another system Ivan explained was the UFO - 'Upright Fruiting Offshoots' the format where the trees were planted at 45 degrees and four upright fruiting leaders created to carry the crop; Ivan said the objective was to control the 'apical dominance' and this system has resulted in the top of the tree growing slower.

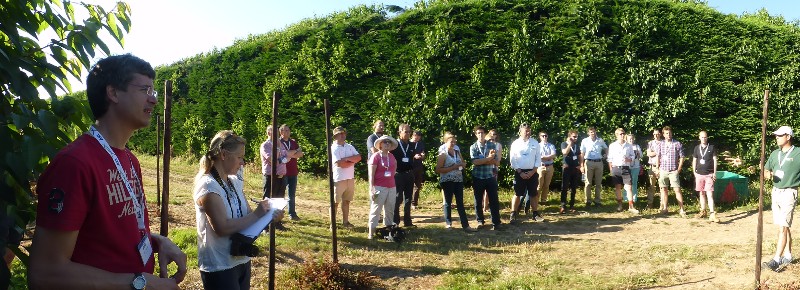

Below: Ivan Velasco explains the objectives of the Cherry Systems Trials

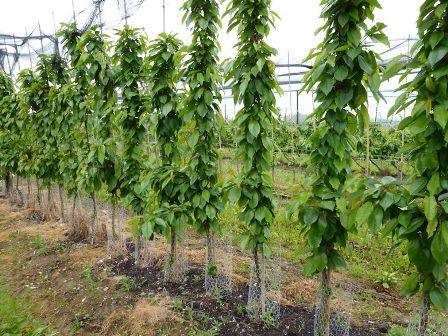

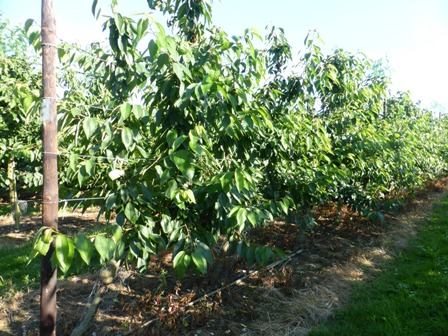

Below: left; 2013 - right; 2016



Below: left 2013 - right; 2016



Below: left 2013 - right; 2016



FAST internal trials


Next up; Abi Dalton - FAST Trials Officer: Abi explained three trials at Brogdale Farm; these are internal trials funded by The Brogdale Trust. We saw the 'Climate Change' site; the 'Misting Trial' and the 'Fruit Wall' trials.


Abi explained the Climate Change Trial is being led by The University of Reading and they will have Phd students working on this project for the 5-10 year 'anticipated life of the project. The purpose of the Climate Change trial, which involves erecting large tunnels over an established trial orchard, is to simulate different temperature profiles.


The project will be looking at how apples respond to temperature and water stress. There are three triple span tunnels with identical trees in each triple span block. The tunnels will be covered in September and that is when the trial will begin. The project was designed by the University of Reading.



One block will be kept at Ambient temperature, a second at Ambient + 2 degrees C and the third at Ambient + 4 degrees C. The temperature regimes will be achieved by automatic venting. There are 21 varieties in each tunnel, fully replicated across the three blocks. Assessment of bud stages, flowering and harvesting; there are early, mid and late season varieties in the trial blocks.

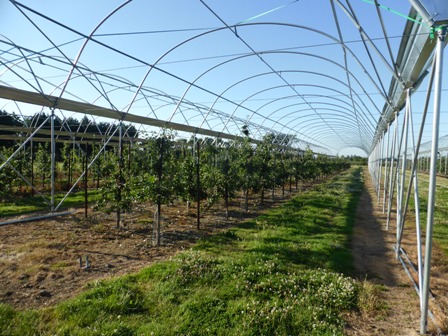

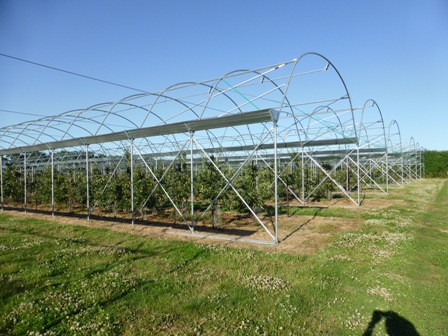

Below: Climate Change tunnels

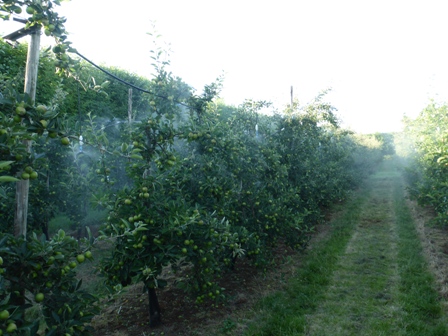

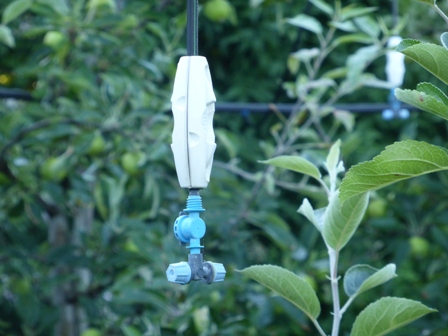

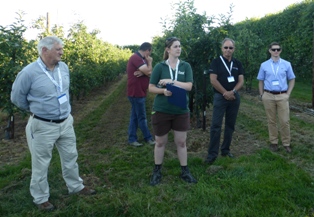

Katie Brunt - misting to enhance fungicide control


Katie explained a combination of misting and tractor applied chemicals forms the trial regime. Fusion a non pesticide solution with a proven record of assisting resistance to mildew' primarily by raising the health of the leaf is applied twice a day every day.


Conventional Scab & Mildew sprays are applied 4 times during the season at 'high risk' periods; determined by RIMPRO


Gala and Braeburn are the varieties in the misting trial; some rows are sprayed conventionally and some rows in association with the misting/spray regime. Extensive assessments are taken for analysis of scab, mildew, nutrition etc.


After harvest a 100 apple sample is taken and analysed to determine influence on size, quality etc.

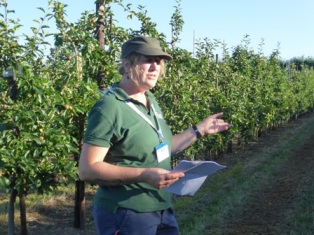

Abi Dalton - fruit wall trials


Abi said this is the fifth year of the trial; Cox is not very suitable; "but we have seen higher cumulative crops on Cox"


In row Cox spacing is 0.8m for the standard pruned trees and 0.6m spacing for the fruit wall. Gala and Braeburn are planted at 0.4m. During the summer regular leaf counts are taken and when the 9 leaf stage is reached, the 'fruit wall' cut is made.


Abi said the target width of the fruit wall is 20cm at top and 40cm at the bottom. She feels some inter pruning (inside the row) by hand is still necessary to keeping the trees in good order.





Following on from Abi Dalton's tour of FAST internal research projects, Scott Garnett, ICL's 'Speciality Agriculture Manager' for UK & Ireland reviewed three of the research projects at Brogdale Farm financed by ICL and carried out by FAST personnel.

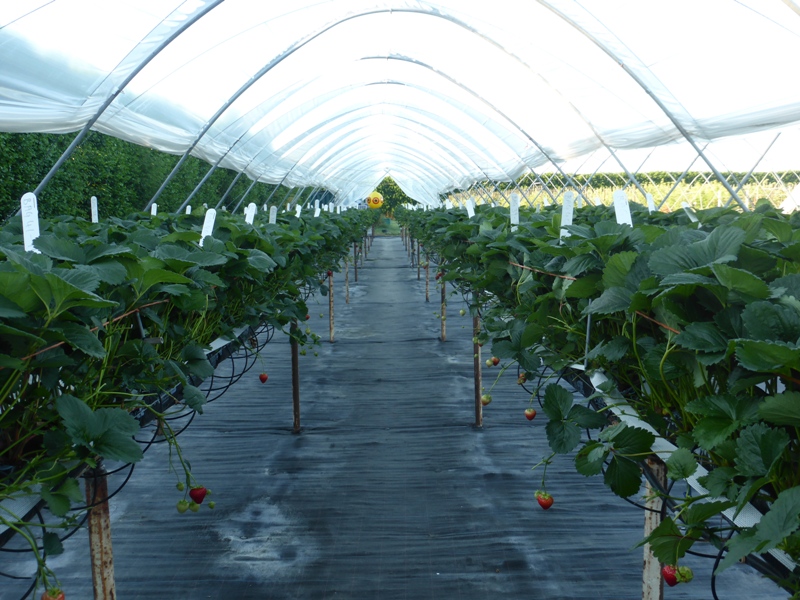

Scott Garnett - ICL replicated Strawberry trial

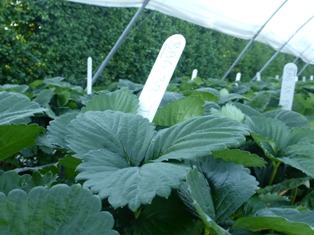

The first project we visited was the replicated trial with 9 replicates; the 9th being the 'control' with just a standard NPK nutrient feed. Scott said "we are testing 4 technologies for foliar application, also 4 products that we are putting into the root system, bacteria amino acids for root development and the establishment of the plants and to see the influence on the amount and quality of the fruit.


The pesticide applications are the same on all the replicates.


Once the fruit ripens the plants are picked every other day and each 'bag' is treated as an individual area and put into individual punnets before evaluation for weight, fruit firmness, brix (sugar) quality and a shelf life test.

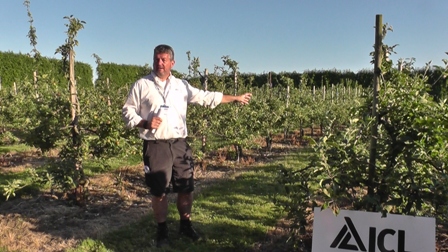

Scott Garnett - Calcium uptake trials on apples


Next we moved onto apples and the second year of treatment where an ICL product is compared with leading products; the replicated trial will be continued for 'at least' another five years.


The trial objective is to evaluate the movement of calcium within the tree. Many proprietary products claim they can move calcium throughout the tree, Scott said in the first year they found no difference between the ICL product and other calcium products, however there was a clear improvement in tree quality where NPK was also applied; Scott believes the trees (in the trial plot) were 'hungry' and benefited from access to vital nutrients; he suggests a mix containing NPK as well as Calcium would be beneficial;


Scott considers that you can only influence the uptake of Calcium 'into the apple' when the fruitlets are at the 7mm-10mm stage; e.g. when cell division is taking place. Scott said due to the low transpiration of the fruit, which he believes motivates the calcium uptake to travel directly from the root system - 'bypassing' the fruit straight to the leaves. Although this could be interpreted that calcium 'targeted at the fruit' is wasted by applications across the season as a whole, Scott said; "we do not recommend that growers stop using calcium products through the season, we need a lot more research before we can advise this action".


Below: Rob Cook FAST with Scott Garnett ICL


Scott said 'we are' doing a lot of tests; the fruitlets are tested three times for nutrient status; also yield tests and when picked the fruit is held in store and shelf life tests; including '7 day warming tests' to evaluate the benefits or not of the applied nutrient products.


Rob Cook - FAST - has the responsibility for the collection of samples and evaluation of the Strawberry and Apple trials.


ICL glycine betaine


An area has been added to the trials this year using a technology called glycine betaine; glycine betaine is a plant extract that is present at high levels in plants like sugar beet, seaweed and cactus, plants that have to cope with a lot of stress. Scott said; "We (ICL) have a form of glycine betaine that we are starting to use as an ICL formulation and 85% of our global trials with this product have produced positive results.


In this trial the ICL glycine betaine has been mixed with Stoppit. Stoppit has been applied at 3 litres per hectare (on its own) while the B replicate has had Stoppit + ICL glycine betaine at 4kg per hectare and the A replicate Stoppit + 2kg per hectare of ICL glycine betaine.


Scott said the first application was made when the fruitlets were at the 7mm-10mm stage and a second application will be made 3 weeks before harvest because we know glycine betaine will last for about a month and these two periods; 'cell division and at the stage when the apple is removed from the tree' are the two most stressful times for the tree.


Scott summarised by saying "we will continue this trial next year, but we are hoping to see a response from the tree showing the plant goes into the winter a lot stronger"


Results to date show; where the glycine betaine went on at 4kg the calcium content in the fruitlets was 50% higher than where we applied only 2kg glycine betaine or in the control area. Scott said that at 8kg per hectare it would be far to expensive for a fruit grower and part of our future trial work will be evaluating whether by adding a surfactant or some other product we can deliver an economical product which delivers the same improved fruit calcium levels achieved in the trials.


In addition to the trial plots at Brogdale Farm, ICL have similar trial sites at three commercial farms in Kent and 'mirror trial sites' in Spain and Germany.


While the evening was a great opportunity to update on new technology, it was also a social occasion with U40's members 'bonding' as only they can........


Below: U40 Chairman Charlie Dunn with Johnny Hinge



Below: Charlie in 'social mood' with a beer in one hand and a burger in the other - and - Adam Ferjani - ICL Sales Support Co-ordinator lending a hand dispensing the 'burgers, buns and beers'



The English Apple Man Comments: "Yet another enjoyable occasion with Under 40' members; thanks to FAST personnel for their input and thanks also to ICL who are major sponsors of the 2017 U40's Conference in South Africa.


That's NEARLY all for this week....but if any reader has the time to read the story below; its worth considering how food supply will look in the next few decades.....see the Millenium generations views...even more of an upheaval compared to BREXIT...........


Next week The English Apple Man will report on Fruit Focus which was held this week - On Wednesday 20th July!


Take care


The English Apple Man
